Product Summary
An attractive appearance is particularly important for architecturally high-quality living concepts and for blunt interior and intermediate doors.
The dormakaba magnetic latch lock cludo (lat. claudo = to close) meets these high demands.
Range of application:
- for interior doors
ÖNORM versions:

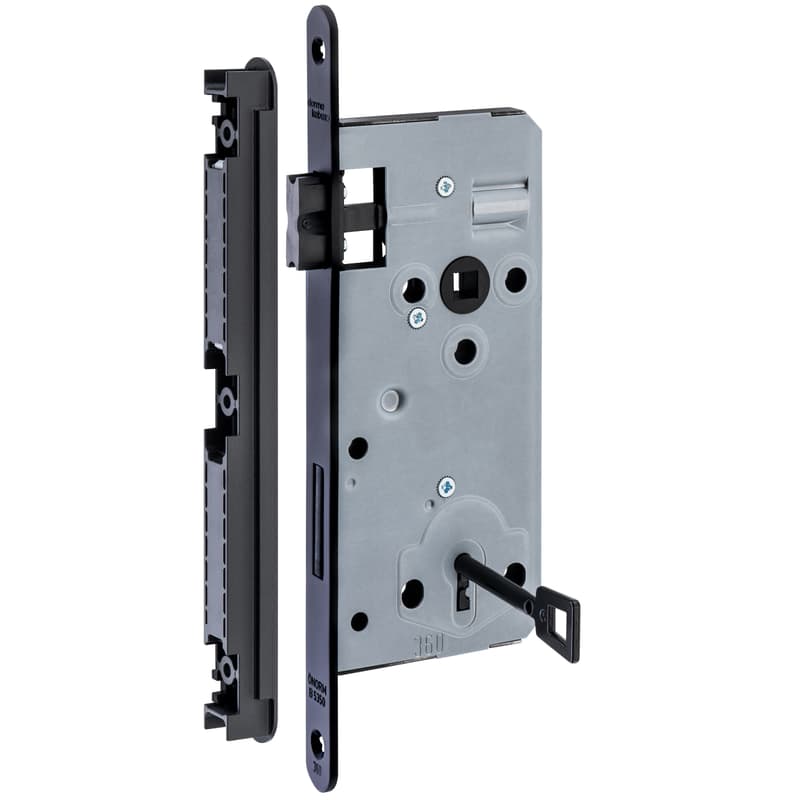

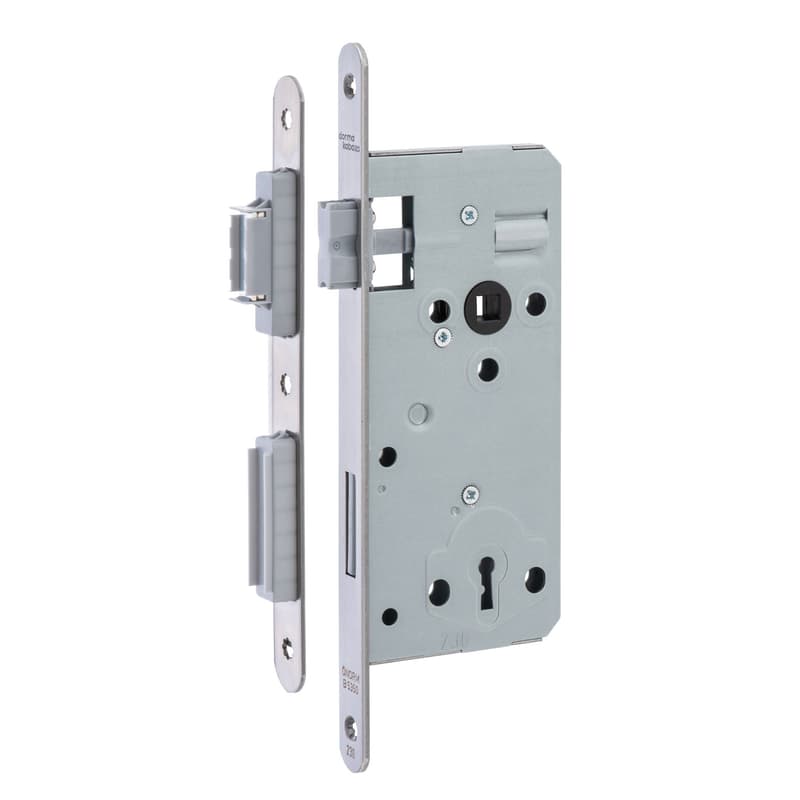

- Flat key (KB) with striking plate SB2, SB12, SB14 (only with black matt version – SWM) and SB30

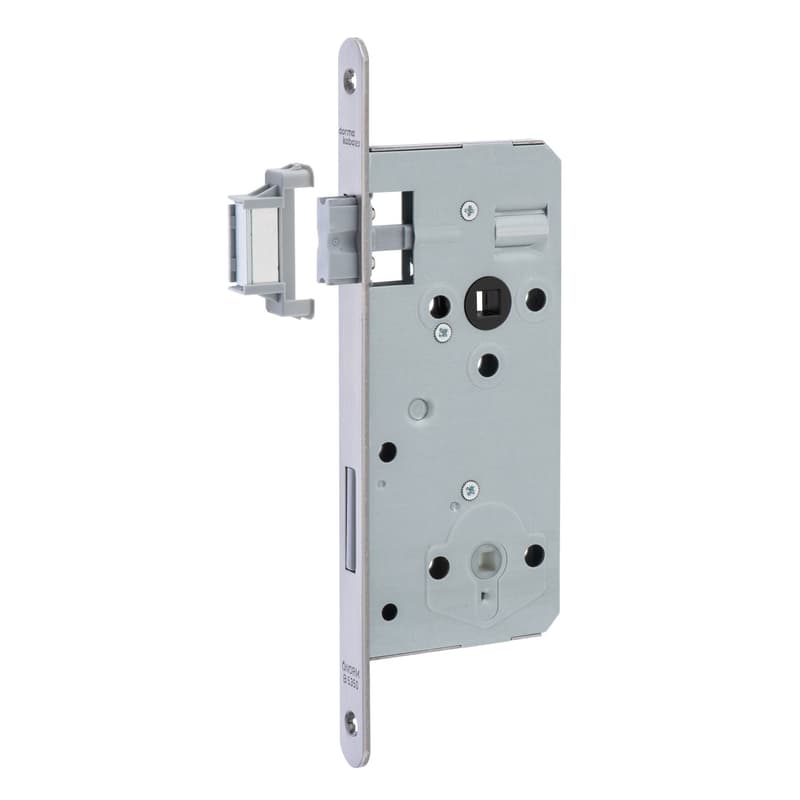

- WC and bathroom doors (WC) with striking plate SB2, SB12, SB14 (only with version black matt – SWM) and SB30
- Profile cylinder (PZ) with strike plate SB2, SB12, SB14 (only with black matt – SWM) and SB30

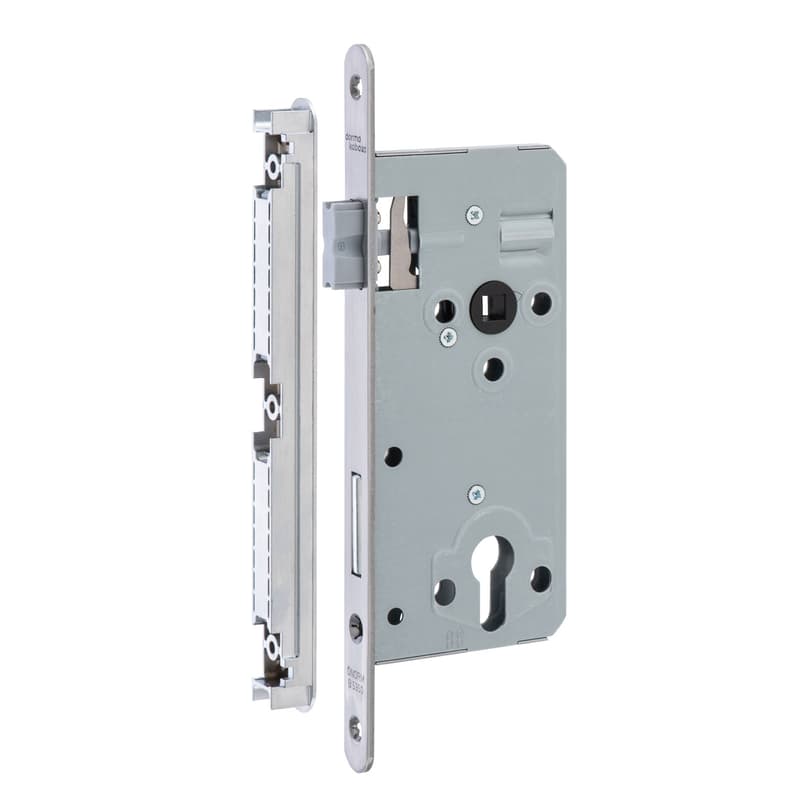

- Profile cylinder with change (WZ) with striking plate SB2, SB12 and SB30
- Latch lock (FA) with striking plate SB6, SB14 (only with version black matt – SWM) and SB30
DIN versions:
- Variegated (BB) with striking plate SB12 and SB22
- WC and bathroom doors (WC) with striking plate SB12 and SB22
- Profile cylinder (PZ) with striking plate SB12 and SB22

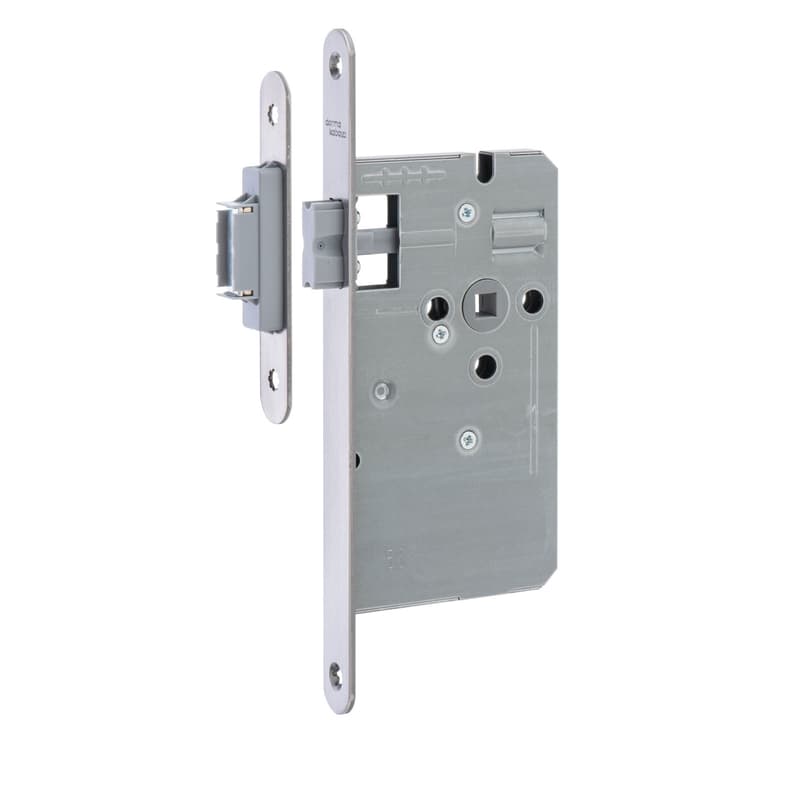

- Latch lock (FA) with striking plate SB6
Description
Product Details
- Smooth, quiet door closing
- Elegant appearance for premium residential concepts
- Easy to clean as there are no protruding corners and edges
- The striking plate plate is invisible when flush doors are closed
- Supplied as a set (door lock and striking plate)
- ÖNORM / DIN version
- Plastic deadbolt: for ÖNORM version, backset 50 mm, incl. key brake for KB version Steel deadbolt: for all ÖNORM versions with backset 60 mm, WZ version and DIN versions
- Plastic magnetic latch with integrated shock absorbers
- Can be used right / left
Strike plates
- SB6 ( 2-way adjustable)
- SB2 ( 2-way adjustable)
- SB22 ( 2-way adjustable)
- SB12 ( 4-way adjustable)
- SB14 (4-way adjustable, matt black – SWM)
- SB30 (steel frame insert)
